Products > Carbon Structural Steel Plate > High Manganese Wear- Resistant Steel Plates > Mn13 High Manganese Wear- Resistant Steel Plates

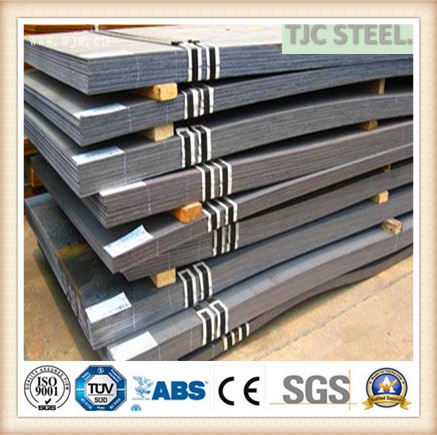

Product name : Mn13 High Manganese Wear- Resistant Steel Plates
Item : Mn13
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

Mn13 is kind of high manganese wear- resistant steel material, which is the best choice for resisting high impacts, high pressures among wear- resistant steels. The features of Mn13 steel plates: 1. The heavier the impacts from outside to the surface of steel plates, the higher performance of abrasive resistance from surface of steel plates will have. 2. With the abrasion of hardening layer of Mn13 steel plates, more new hardening layers will be taken shape continually. Mn13 hot rolled steel plates have excellent properties in resisting strong impacts abrasion and high stress abrasion. Besides, Mn13 steel plates won’t be crushed when in application and are easy to be cutted, welded and bended when taking mechanical machining works.



Application:

Mn13 steel plates are widely used in liners of ball mill, excavator dipper teeth, dental plates of crusher machine, safe case, bullet- proof car, etc. Normally Ma13 steel plates are popular in the applications with easy structure like liner plates, teeth plates, broken walls, rolling ace tabular wall, roller shell, form relieved teeth, etc.



Technical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)



Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

Mn13

C

A:0.90-1.20

Mn

A:11-14

Si

A: 0.30-0.80

P

A:0.035

S

A:0.030

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

           MPa

Mn13

Tensile Strength

I:800

Yield Strength

I:--

Elongation

I:40%

Impact Test( if any)

0℃



HB

I:300



TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of Mn13 in China. For more details, please contact us freely.
