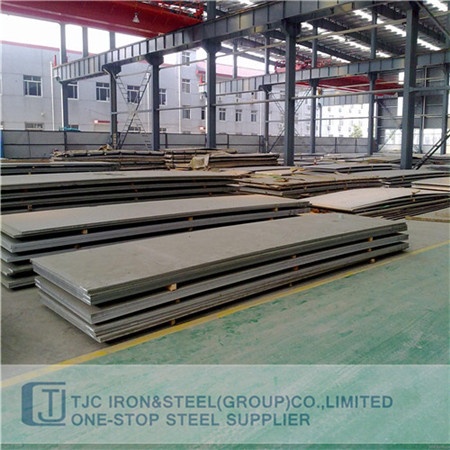

Product name : DIN EN 10028-6 P690QH Quenched and Tempered Steel Plate
Item : EN10028-6 P690QH
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

TJC Steel can supply DIN EN 10028-6 P690QH Quenched and Tempered Steel Plate mainly used in products which are made of quenched and tempered steel plates..  .



Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled, Quenched( Q) and Tempered( T)



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

DIN EN 10028-6 P690QH

C

A:0.20

Mn

A:1.70

Si

A:0.80

P

A:0.025

S

A:0.015

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

           MPa

DIN EN 10028-6 P690QH

Tensile Strength

770-940

Yield Strength

I:690

Elongation

I:14%

Impact Test( if any)

-20



TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of DIN EN 10028-6 P690QH Quenched and Tempered Steel Plate in China. For more details, please contact us freely.



Click Here to See PDF Details for DIN EN 10028-6 P690QH Quenched and Tempered Steel Plate
