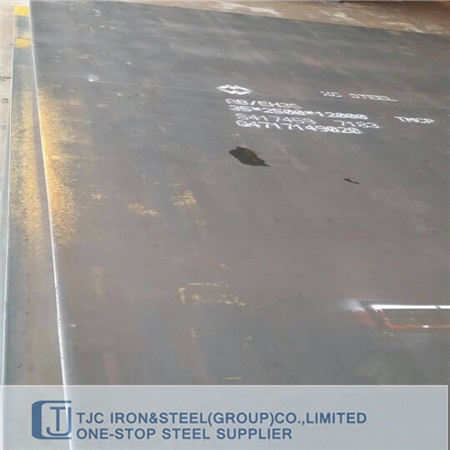

TJC Steel can supply SA709 Grade HPS70W/ SA709 GrHPS70W High-Strength Low-Alloy Structural Steel Plate, mainly used in bridges building
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Quenched( Q), Tempered( T)
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
SA709 Grade HPS70W/ SA709 GrHPS70W
|
C
|
A:0.11
|
Mn
|
1.10-1.35
|
Si
|
0.30-0.60
|
P
|
A:0.02
|
S
|
A:0.006
|
Mechanical Properties( Mpa)
Grade/ Material
|
Tensile Test
|
MPa
|
SA709 Grade HPS70W/ SA709 GrHPS70W
|
Tensile Strength
|
585-760
|
Yield Strength
|
I:485
|
Elongation
|
I:19%
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASME SA709/ SA709M Grade HPS70W High-Strength Low-Alloy Structural Steel Plates in China. For more details, please contact us freely.
Click Here to See PDF Details for ASME SA709/ SA709M Grade HPS70W High-Strength Low-Alloy Structural Steel Plates
|
