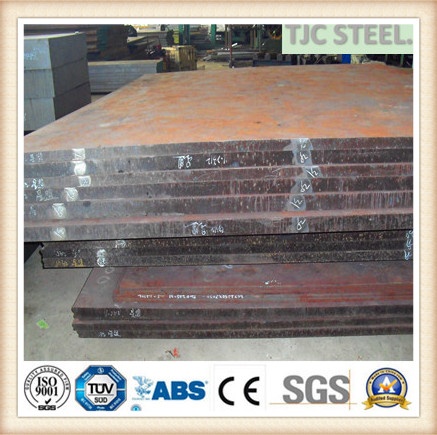

Product name : ASME SA709/ SA709M Grade 36 High-Strength Low-Alloy Structural Steel Plates
Item : SA709 Gr36
 Enlarge Image                   Back
←[Previous Product]


  Details:

TJC Steel can supply SA709 Grade 36/ SA709 Gr36 High-Strength Low-Alloy Structural Steel Plate, mainly used in bridges building



Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled, Quenched( Q), Tempered( T)



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

SA709 Grade 36/ SA709 Gr36

C

A:0.25

Mn

0.80-1.20

Si

A:0.40

P

A:0.04

S

A:0.05

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

MPa

SA709 Grade 36/ SA709 Gr36

Tensile Strength

400-500

Yield Strength

I:250

Elongation

I:20%

Impact Test( if any)





TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASME SA709/ SA709M Grade 36 High-Strength Low-Alloy Structural Steel Plates in China. For more details, please contact us freely.



Click Here to See PDF Details for ASME SA709/ SA709M Grade 36 High-Strength Low-Alloy Structural Steel Plates
