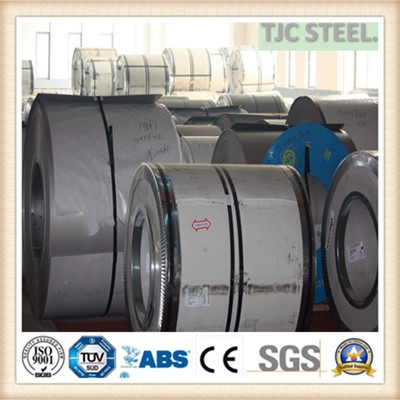

TJC Steel can supply JIS G 3125 SPA-C/ SPAC High Weathering Resistant Structural Steel Plate, main forms are cold rolled steel plates, steel strips.
Production Size: Thickness: 0.6mm-2.3mm; Width: 500mm- 1500mm; Length: 4000mm- 12000mm/ Coils.
Production ability:10000 Tons Per Month.
Production Way: Cold Rolled,
Technical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
JIS G 3125 SPA-C/ SPAC
|
C
|
A:0.12
|
Mn
|
A:0.60
|
Si
|
A:0.2-0.75
|
P
|
A:0.07-0.150
|
S
|
A:0.035
|
Cu
|
0.25-0.55
|
Cr
|
0.3-1.25
|
Ni
|
A:0.65
|
Mechanical Properties( Mpa)
Grade/ Material
|
Tensile Test
|
MPa
|
JIS G 3125 SPA-C/ SPAC
|
Tensile Strength
|
I:450
|
Yield Strength
|
I:315
|
Elongation
|
I:26%
|
Impact Test( if any)
|
--
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of JIS G 3125 SPA-C/ SPAC High Weathering Resistant Structural Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for JIS G 3125 SPA-C/ SPAC High Weathering Resistant Structural Steel Plate
Search Name: JIS G 3125 SPA-C/ SPAC Steel Plate, SPA-C Steel Plate/ High Weathering Resistant Structural Steel Plate
|
