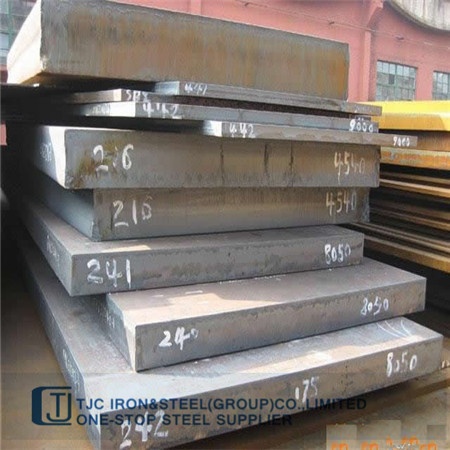

Product name : JIS G 3114 SM A 490AW Welded Structural Weathering Resistant Steel Plate
Item : JISG3114 SMA490AW
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

TJC Steel can supply JIS G 3114 SM A 490AW Welded Structural Weathering Resistant Steel Plate, mainly used in building of bridge and other fielding which has a request for welding property.



Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled,



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

JIS G 3114 SM A 490AW

C

A:0.18

Mn

A:1.40

Si

A:0.15-0.65

P

A:0.035

S

A:0.035

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

           MPa

JIS G 3114 SM A 490AW

Tensile Strength

490-610

Yield Strength

I:365

Elongation

I:19%

Impact Test( if any)

--



TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of JIS G 3114 SM A 490AW Welded Structural Weathering Resistant Steel Plate in China. For more details, please contact us freely.



Click Here to See PDF Details for JIS G 3114 SM A 490AW Welded Structural Weathering Resistant Steel Plate
