Product name : ABS Grade AH40 Shipbuilding Steel Plate
Item : ABS AH40
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

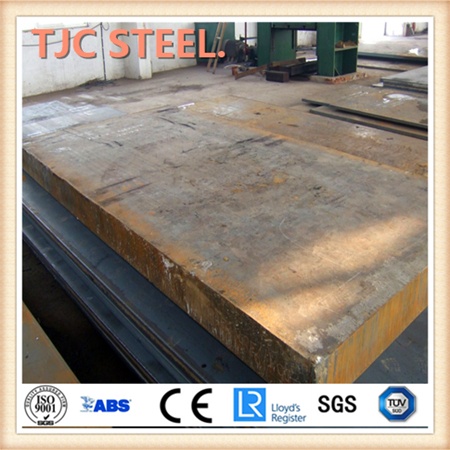

TJC Steel can supply ABS Grade AH40 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.



Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

ABS Grade AH40/ ABS AH40

C

0.18

Mn

0.90- 1.60

Si

0.10- 0.50

P

0.035

S

0.035

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

Ksi/MPa

ABS Grade AH40/ ABS AH40

Tensile Strength

74-94/ 490-620

Yield Strength

57/ 390

Elongation

I: 19%

Impact Test( if any)

0℃



TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ABS Grade AH40 Shipbuilding Steel Plate in China. For more details, please contact us freely.



Click Here to See PDF Details for ABS Grade AH40 Shipbuilding Steel Plate
