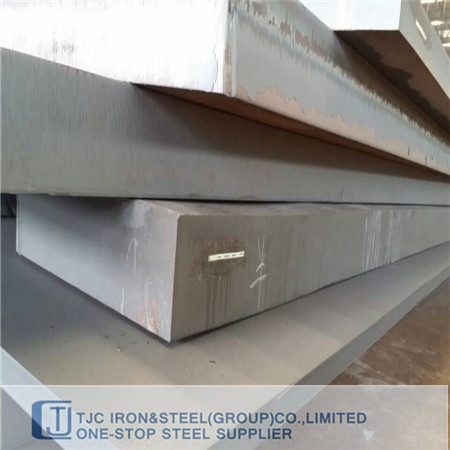

TJC Steel can supply A537 Class 2/ A537 Cl2 pressure vessel steel plate, mainly used in construction for pressure vessels.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Quenched and Tempered( Q+T)
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
|
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
|
A537 Class 2/ A537 Cl2
|
C
|
A:0.24
|
|
Mn
|
0.70-1.35
|
|
Si
|
0.15-0.50
|
|
P
|
0.035
|
|
S
|
0.035
|
Mechanical Properties( Mpa)
|
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
|
A537 Class 2/ A537 Cl2
|
Tensile Strength
|
80-100/550-690
|
|
Yield Strength
|
I:60/415
|
|
Elongation
|
I:22%
|
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASTM A537/ A537M Class 2 Pressure Vessel Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for ASTM A537/ A537M Class 2 Pressure Vessel Steel Plate
|
