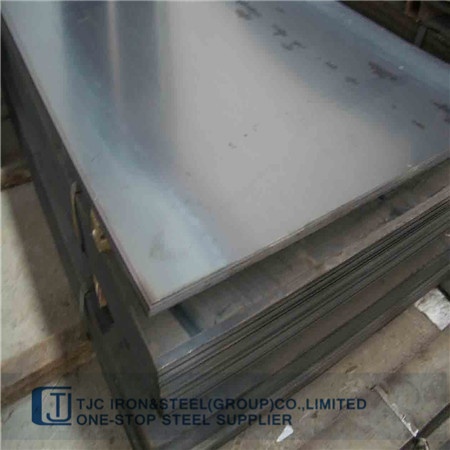

TJC Steel can supply SA514 Grade E/ SA514 GrE Quenched and Tempered Alloy steel plate, mainly used in construction with high request of yield strength and welding.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Q+T
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
SA514 Grade E/ SA514 GrE
|
C
|
0.12-0.20
|
Mn
|
0.40-0.70
|
Si
|
0.20-0.40
|
P
|
A:0.035
|
S
|
A:0.035
|
Mechanical Properties( Mpa)
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
SA514 Grade E/ SA514 GrE
|
Tensile Strength
|
110-130/760-895
|
Yield Strengh
|
100/690
|
Elongation
|
18%
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASME SA514/ SA514M Grade E Quenched and Tempered Alloy Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for ASME SA514/ SA514M Grade E Quenched and Tempered Alloy Steel Plate
|
