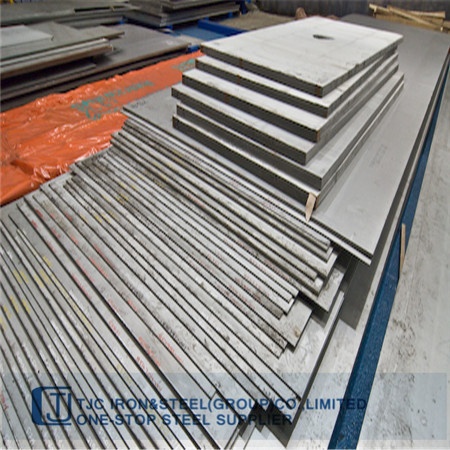

Product name : ASTM A514/ A514M Grade J Quenched and Tempered Alloy Steel Plate
Item : A514 Grade J/ A514 GrJ
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

TJC Steel can supply A514 Grade J/ A514 GrJ Quenched and Tempered Alloy steel plate, mainly used in construction with high request of yield strength and welding.



Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled, Q+T



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

A514 Grade J/ A514 GrJ

C

0.12-0.21

Mn

0.45-0.70

Si

0.20-0.35

P

A:0.035

S

A:0.035

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

Ksi/MPa

A514 Grade J/ A514 GrJ

Tensile Strength

110-130/760-895

Yield Strengh

100/690

Elongation

18%

Impact Test( if any)





TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASTM A514/ A514M Grade J Quenched and Tempered Alloy Steel Plate in China. For more details, please contact us freely.



Click Here to See PDF Details for ASTM A514/ A514M Grade J Quenched and Tempered Alloy Steel Plate
