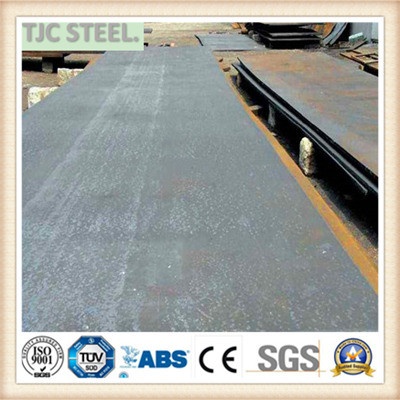

TJC Steel can supply DNV Grade DH36 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.
Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
DNV Grade DH36/ DNV DH36
|
C
|
0.18
|
Mn
|
0.90- 1.60
|
Si
|
0.10- 0.50
|
P
|
0.035
|
S
|
0.035
|
Mechanical Properties( Mpa)
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
DNV Grade DH36/ DNV DH36
|
Tensile Strength
|
71-90/ 490-620
|
Yield Strength
|
51/ 355
|
Elongation
|
I: 19%
|
Impact Test( if any)
|
-20℃
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of DNV Grade DH36 Shipbuilding Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for DNV Grade DH36 Shipbuilding Steel Plate
|
