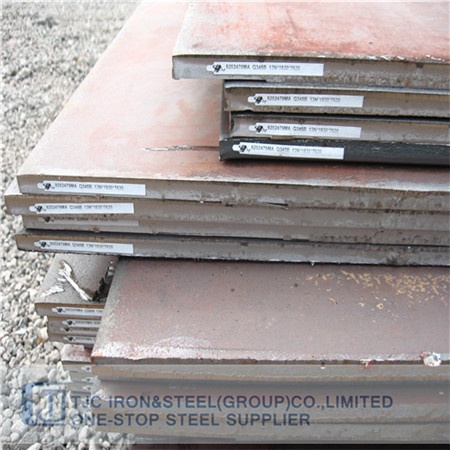

Product name : DNV Grade AH36 Shipbuilding Steel Plate
Item : DNV AH36
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

TJC Steel can supply DNV Grade AH36 shipbuilding steel plate/ marine steel plate, mainly used in construction for ships.



Production Size: Thickness: 4mm- 200mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

DNV Grade AH36/ DNV AH36

C

0.18

Mn

0.90- 1.60

Si

0.10- 0.50

P

0.035

S

0.035

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

Ksi/MPa

DNV Grade AH36/ DNV AH36

Tensile Strength

71-90/ 490-620

Yield Strength

51/ 355

Elongation

I: 19%

Impact Test( if any)

0℃



TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of DNV Grade AH36 Shipbuilding Steel Plate in China. For more details, please contact us freely.



Click Here to See PDF Details for DNV Grade AH36 Shipbuilding Steel Plate
