AS/ NZS 3678 is Australian/ New Zealand Standard that names the technical data for structural steel.

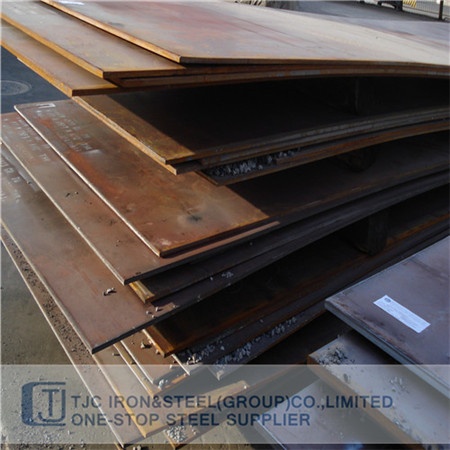

TJC Steel can supply AS3678 Grade 300L15/ AS3678 Gr300L15 Structural Carbon Steel Plate, mainly used in construction in the fields requiring mid and low strength carbon steel plates like floor and bridge building, etc.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled,
Technical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
|
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
|
AS3678 Grade 300L15/ AS3678 Gr300L15
|
C
|
A:0.15
|
|
Mn
|
A:0.60
|
|
Si
|
A:0.35
|
|
P
|
A:0.030
|
|
S
|
A:0.030
|
Mechanical Properties( Mpa)
|
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
|
AS3678 Grade 300L15/ AS3678 Gr300L15
|
Tensile Strength
|
430
|
|
Yield Strength
|
I:200
|
|
Elongation
|
I:21%
|
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of AS/ NZS 3678 Grade 300L15 Structural Carbon Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for AS/ NZS 3678 Grade 300L15 Structural Carbon Steel Plate
|
