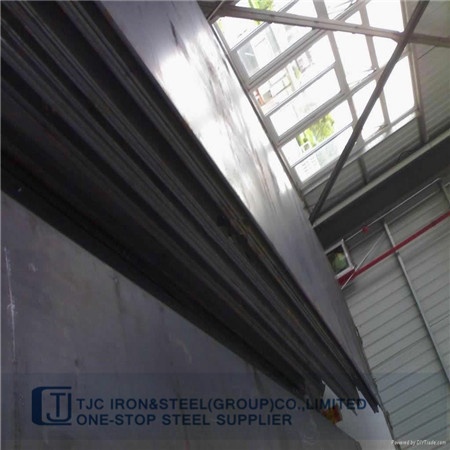

Product name : ASME SA572/ SA572M Grade 50 High-Strength Low-Alloy Structural Steel Plates
Item : SA572 Grade 50/ SA572 Gr50
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

TJC Steel can supply SA572 Grade 50/ SA572 Gr50 High-Strength Low-Alloy Structural Steel Plate, mainly used in construction for bridges and welding fields.



Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.

Production ability:10000 Tons Per Month.

Production Way: Hot Rolled



Techanical Details:

Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)

Chemical Composition( %):

Grade/ Material

Element

Composition( Max-A, Min-I)

SA572 Grade 50/ SA572 Gr50

C

A:0.23

Mn

A:1.35

Si

A:0.05

P

A:0.04

S

A:0.05

Mechanical Properties( Mpa)

Grade/ Material

Tensile Test

Ksi/MPa

SA572 Grade 50/ SA572 Gr50

Tensile Strength

I:65/450

Yield Strength

I:50/345

Elongation

I:18%

Impact Test( if any)





TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASME SA572/ SA572M Grade 50 High-Strength Low-Alloy Structural Steel Plates in China. For more details, please contact us freely.



Click Here to See PDF Details for ASME SA572/ SA572M Grade 50 High-Strength Low-Alloy Structural Steel Plates
