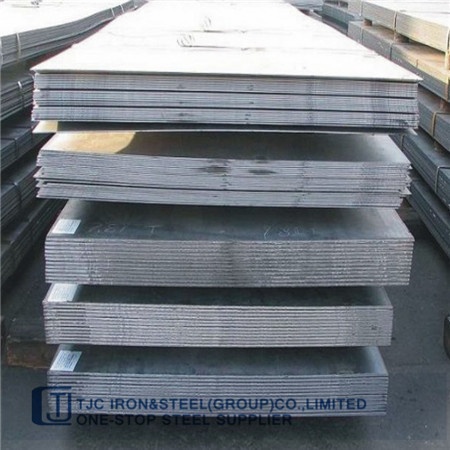

TJC Steel can supply A514 Grade S/ A514 GrS Quenched and Tempered Alloy steel plate, mainly used in construction with high request of yield strength and welding.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Q+T
Techanical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
|
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
|
A514 Grade S/ A514 GrS
|
C
|
0.11-0.21
|
|
Mn
|
1.10-1.50
|
|
Si
|
0.15-0.45
|
|
P
|
A:0.035
|
|
S
|
A:0.035
|
Mechanical Properties( Mpa)
|
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
|
A514 Grade S/ A514 GrS
|
Tensile Strength
|
110-130/760-895
|
|
Yield Strengh
|
100/690
|
|
Elongation
|
18%
|
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited)is the most competitive manufacture and supplier of ASTM A514/ A514M Grade S Quenched and Tempered Alloy Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for ASTM A514/ A514M Grade S Quenched and Tempered Alloy Steel Plate
|
