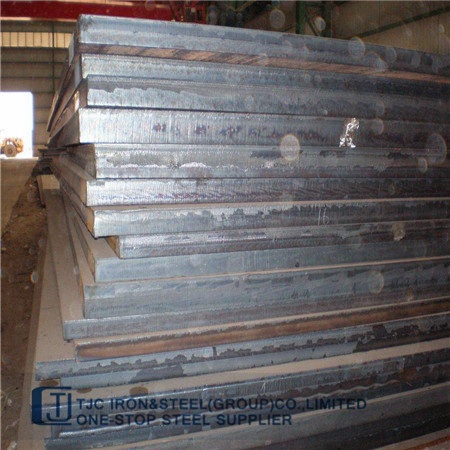

TJC Steel can supply A387 Grade 12 Class 1/ A387 Gr12 Cl1 pressure vessel steel plate, mainly used in construction for pressure vessels.
Production Size: Thickness: 4mm- 400mm; Width: 1000mm- 4000mm; Length: 4000mm- 12000mm.
Production ability:10000 Tons Per Month.
Production Way: Hot Rolled, Annealing, Normalizing, Tempering.
Technical Details:
Heat Treatment: Normalized, Quenched, Tempered, HIC, Impact Test,..( Optional if not provided in rules)
Chemical Composition( %):
Grade/ Material
|
Element
|
Composition( Max-A, Min-I)
|
A387 Grade 12 Class 1/ A387 Gr12 Cl1
|
C
|
0.05-0.17
|
Mn
|
0.40-0.65
|
Si
|
0.15-0.40
|
P
|
0.035
|
S
|
0.035
|
Mechanical Properties( Mpa)
Grade/ Material
|
Tensile Test
|
Ksi/MPa
|
A387 Grade 12 Class 1/ A387 Gr12 Cl1
|
Tensile Strength
|
55-80/380-550
|
Yield Strengh
|
33/230
|
Elongation
|
18%
|
Impact Test( if any)
|
|
TJC Steel( owned by TJC Iron&Steel (Group) Co., Limited) is the most competitive manufacture and supplier of ASTM A387/ A387M Grade 12 Class 1 Pressure Vessel Steel Plate in China. For more details, please contact us freely.
Click Here to See PDF Details for ASTM A387/ A387M Grade 12 Class 1 Pressure Vessel Steel Plate
|
