EN10025-2 S355J0 is a non-alloy structural steel grade that is widely used in various construction and engineering applications. This grade is a standard carbon manganese steel that offers high tensile and yield strength and is supplied in the normalized condition with a specified minimum yield strength of 355 MPa.

Chemical Composition:

The chemical composition of S355J0 is carefully controlled to ensure the material's mechanical properties and weldability. The typical chemical composition is as follows:

· Carbon (C): ≤ 0.22%

· Silicon (Si): ≤ 0.55%

· Manganese (Mn): ≤ 1.60%

· Phosphorus (P): ≤ 0.025%

· Sulfur (S): ≤ 0.025%

· Copper (Cu): ≤ 0.55%

· Nickel (Ni): ≤ 0.55%

· Chromium (Cr): ≤ 0.25%

· Molybdenum (Mo): ≤ 0.08%

· Niobium (Nb): ≤ 0.05%

· Titanium (Ti): ≤ 0.03%

· Vanadium (V): ≤ 0.11%

Mechanical Properties:

The mechanical properties of S355J0 are as follows:

· Yield Strength: ≥ 355 MPa

· Tensile Strength: 470 - 630 MPa

· Elongation: ≥ 22%

· Impact Energy (at -20°C): ≥ 27 Joules

Heat Treatment:

S355J0 is supplied in the normalized condition. Normalizing is a heat treatment process that involves heating the steel to a temperature above its upper critical point and then cooling it in air. This process refines the grain structure and improves the mechanical properties of the steel.

Low-Temperature Impact Test:

S355J0 is tested for its impact resistance at -20°C, ensuring that the material maintains its toughness and ductility at low temperatures. The minimum impact energy required is 27 Joules.

Available Dimensions:

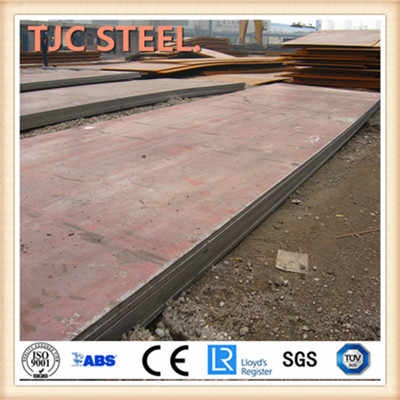

TJC Steel Group offers S355J0 structural steel plates in a wide range of sizes, with thicknesses ranging from 6mm to 300mm, widths up to 4000mm, and lengths up to 12000mm. Custom sizes are also available upon request.

Main Applications:

S355J0 is used in a variety of applications where strength and durability are required, such as:

· Construction of bridges and other structures

· Offshore structures

· Power plants

· Earthmoving equipment

· Load-bearing parts for mobile equipment

· Wind towers

· Mechanical components

TJC Steel Group Supply Cases:

TJC Steel Group has supplied S355J0 structural steel plates to various industries and projects around the world. One notable supply case was for the construction of a major bridge in Europe, where the high strength and excellent toughness of S355J0 were crucial for the project's success. Another case involved the supply of S355J0 plates for the construction of a power plant in Asia, where the material's resistance to low-temperature impact was essential.

In conclusion, EN10025-2 S355J0 is a versatile structural steel grade that offers excellent mechanical properties and is suitable for a wide range of applications. TJC Steel Group is a trusted supplier of this material, providing high-quality plates that meet the strictest standards and requirements.
