EN10025-2 S235J2 is a non-alloy structural steel grade that is widely used in various construction and engineering applications. This grade is part of the European standard for hot-rolled structural steel, and it is known for its excellent mechanical properties and versatility.

Chemical Composition:

The chemical composition of S235J2 is carefully controlled to ensure that the steel is strong, durable, and suitable for welding. The typical chemical composition by weight percentage is as follows:

· Carbon (C): ≤ 0.17%

· Silicon (Si): ≤ 0.55%

· Manganese (Mn): ≤ 1.40%

· Phosphorus (P): ≤ 0.045%

· Sulfur (S): ≤ 0.045%

· Copper (Cu): ≤ 0.55%

· Nickel (Ni): ≤ 0.55%

· Chromium (Cr): ≤ 0.30%

· Molybdenum (Mo): ≤ 0.10%

· Niobium (Nb): ≤ 0.05%

· Titanium (Ti): ≤ 0.05%

· Vanadium (V): ≤ 0.10%

Mechanical Properties:

The mechanical properties of S235J2 are characterized by its yield strength, tensile strength, and elongation. The minimum values for these properties are as follows:

· Yield Strength: ≥ 235 MPa

· Tensile Strength: 360 - 510 MPa

· Elongation: ≥ 22%

Heat Treatment State:

S235J2 steel plates are supplied in the normalized condition. Normalizing is a heat treatment process that improves the mechanical properties of the steel, especially its toughness and hardness. This process involves heating the steel to a temperature above its critical point and then cooling it in air.

Low-Temperature Impact Test:

S235J2 is suitable for use in sub-zero temperatures due to its good impact properties. The steel is tested at -20°C, and the minimum impact energy value is 27 Joules.

Available Dimensions:

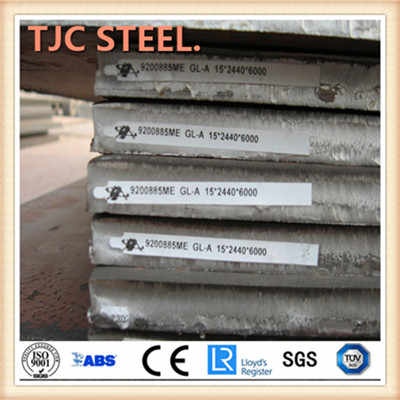

TJC Steel Group offers S235J2 structural steel plates in a wide range of sizes to meet the needs of various applications. The typical thickness range is from 3mm to 80mm, with widths up to 3.5 meters and lengths up to 18 meters.

Main Applications:

S235J2 steel plates are commonly used in the construction of buildings, bridges, and other structures where strength and durability are essential. They are also used in the manufacturing of vehicles, ships, and heavy machinery.

TJC Steel Group Supply Cases:

TJC Steel Group has supplied S235J2 steel plates to numerous projects around the world. One notable example is the construction of a suspension bridge in Europe, where S235J2 plates were used for the main structural components due to their excellent mechanical properties and weldability. Another case involved the manufacturing of heavy-duty trucks, where the steel's toughness and strength were crucial for the vehicle's performance.

In conclusion, EN10025-2 S235J2 is a versatile and reliable structural steel grade that is well-suited for a wide range of applications. TJC Steel Group's extensive experience in supplying this grade ensures that customers receive high-quality steel products that meet their specific requirements.
