EN10028-6 P460QL2 is a pressure vessel steel grade that is widely recognized for its exceptional strength and durability, especially at low temperatures. It is a quenched and tempered fine-grained steel that conforms to the European standard for flat products for pressure equipment. This grade is particularly suitable for applications where high resistance to brittle fracture is required, such as in the construction of pressure vessels and boilers operating at cryogenic temperatures.

Chemical Composition

The chemical composition of EN10028-6 P460QL2 is tightly controlled to ensure the necessary mechanical properties and weldability. The typical chemical composition is as follows:

· Carbon (C): ≤ 0.16%

· Silicon (Si): ≤ 0.60%

· Manganese (Mn): ≤ 1.50%

· Phosphorus (P): ≤ 0.020%

· Sulfur (S): ≤ 0.010%

· Nickel (Ni): ≤ 0.70%

· Chromium (Cr): ≤ 0.30%

· Molybdenum (Mo): ≤ 0.10%

· Copper (Cu): ≤ 0.30%

· Niobium (Nb): ≤ 0.05%

· Titanium (Ti): ≤ 0.03%

· Vanadium (V): ≤ 0.05%

· Boron (B): ≤ 0.005%

Mechanical Properties

The mechanical properties of P460QL2 are characterized by high strength and excellent toughness, which are achieved through the quenching and tempering process. The typical mechanical properties are as follows:

· Yield Strength (ReH): ≥ 460 MPa

· Tensile Strength (Rm): 570 - 720 MPa

· Elongation (A): ≥ 17%

· Impact Energy (KV): ≥ 40 J at -40°C

Heat Treatment State

The P460QL2 steel plates are supplied in the quenched and tempered condition. This heat treatment process ensures that the steel has a fine-grained microstructure, which contributes to its superior mechanical properties and improved resistance to brittle fracture.

Low-Temperature Impact Test

P460QL2 is subjected to a low-temperature impact test to ensure its suitability for use in cryogenic conditions. The steel must demonstrate an impact energy of at least 40 joules at a test temperature of -40°C, which confirms its ability to withstand low-temperature environments without suffering from brittle failure.

Available Dimensions

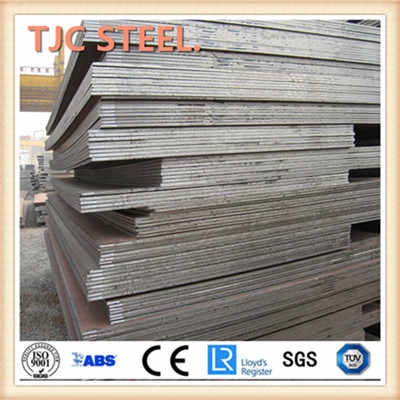

TJC Steel Group offers EN10028-6 P460QL2 pressure vessel steel plates in a wide range of sizes to meet the diverse needs of our customers. The typical available dimensions are:

· Thickness: 6mm to 300mm

· Width: 1500mm to 4020mm

· Length: 3000mm to 18000mm

Main Applications

The P460QL2 grade is primarily used in the fabrication of pressure vessels and boilers, particularly in industries such as:

· Chemical Processing

· Oil and Gas

· Power Generation

· Cryogenic Storage Facilities

· Shipbuilding

TJC Steel Group Supply Cases

TJC Steel Group has a proven track record of supplying high-quality P460QL2 steel plates to various industries worldwide. One notable supply case involved the delivery of large quantities of P460QL2 plates for the construction of a liquefied natural gas (LNG) storage facility. The plates were utilized in the production of LNG tanks, where their exceptional low-temperature toughness was crucial for ensuring the safety and reliability of the storage system.

In another instance, TJC supplied P460QL2 steel to a leading boiler manufacturer. The steel plates were used to fabricate the pressure vessel components of a high-capacity boiler, which required a material that could withstand high pressures and temperatures while maintaining structural integrity.

Conclusion

EN10028-6 P460QL2 is a premium grade pressure vessel steel that offers superior strength and toughness, particularly at low temperatures. TJC Steel Group is a trusted supplier of this material, providing high-quality plates that meet the stringent requirements of critical applications in various industries. With a wide range of available sizes and a strong history of successful supply cases, TJC is well-equipped to meet the demands of projects requiring P460QL2 steel plates.
