EN10028-3 P460NH is a pressure vessel steel grade with excellent mechanical properties and chemical composition, specifically designed for applications at low temperatures. This grade is widely used in the fabrication of welded pressure vessels and boilers where notch toughness at low temperatures is a critical requirement.

Chemical Composition:

EN10028-3 P460NH steel plate is characterized by its precise chemical composition, which ensures its high performance under pressure and at low temperatures. The typical chemical composition is as follows:

· Carbon (C): ≤ 0.16%

· Silicon (Si): ≤ 0.50%

· Manganese (Mn): ≤ 1.50%

· Phosphorus (P): ≤ 0.025%

· Sulfur (S): ≤ 0.015%

· Nickel (Ni): ≤ 0.70%

· Chromium (Cr): ≤ 0.30%

· Molybdenum (Mo): ≤ 0.08%

· Niobium (Nb): ≤ 0.05%

· Titanium (Ti): ≤ 0.03%

· Vanadium (V): ≤ 0.05%

Mechanical Properties:

The mechanical properties of P460NH are crucial for its application in pressure vessels. The following are the typical mechanical properties:

· Yield Strength: ≥ 430 MPa (at room temperature)

· Tensile Strength: 570 - 720 MPa

· Elongation: ≥ 19%

· Impact Energy (at -20°C): ≥ 40 Joules (longitudinal test specimen)

Heat Treatment:

P460NH is generally supplied in the normalized condition. Normalization is a heat treatment process that involves heating the steel to a temperature above its upper critical point and then cooling it in air. This process refines the grain structure and improves the mechanical properties of the steel.

Low-Temperature Impact Test:

The material is subjected to a low-temperature impact test to ensure that it maintains its toughness at sub-zero temperatures. The impact energy values are measured at -20°C, which is a standard temperature for such tests, but the material can also be tested at other temperatures as per specific requirements.

Available Dimensions:

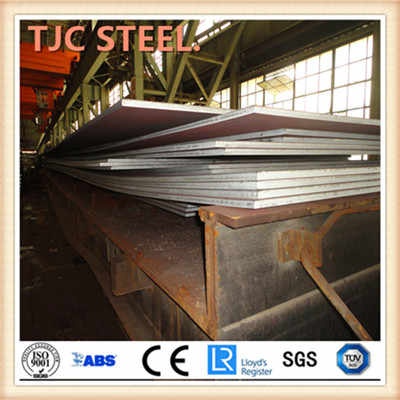

TJC Steel Group offers EN10028-3 P460NH pressure vessel steel plates in a wide range of sizes to meet the diverse needs of our customers. The typical available dimensions are:

· Thickness: 6mm - 300mm

· Width: 1500mm - 4020mm

· Length: 3000mm - 18000mm

Main Applications:

The primary applications of P460NH include:

· Pressure vessels

· Boilers

· Storage tanks

· Heat exchangers

· Columns and other critical components in petrochemical and chemical industries

· Equipment for the oil and gas industry

TJC Steel Group Supply Cases:

TJC Steel Group has a proven track record of supplying high-quality P460NH steel plates to various industries worldwide. One notable supply case involved the delivery of P460NH plates for a petrochemical plant in Southeast Asia. The plates were used to construct pressure vessels that required exceptional toughness and strength at low temperatures. TJC's ability to provide material that met the stringent requirements of the project was instrumental in the successful completion of the plant.

In another instance, TJC supplied P460NH steel to a European manufacturer of liquefied natural gas (LNG) storage tanks. The material's excellent low-temperature impact properties were critical for ensuring the safety and reliability of the tanks in cryogenic conditions.

TJC Steel Group's commitment to quality and customer satisfaction has made it a trusted supplier of P460NH pressure vessel steel plates. With a wide range of available sizes and a history of successful supply cases, TJC is well-equipped to meet the demands of any project requiring this high-performance material.
