EN10028-3 P460N is a pressure vessel steel grade that is widely used in the fabrication of pressure vessels and boilers due to its excellent mechanical properties and resistance to high temperatures. This grade is compliant with the European standard EN10028-3, which specifies requirements for flat products for pressure equipment made of weldable fine-grain steels.

Chemical Composition:

The chemical composition of P460N is carefully controlled to ensure the necessary mechanical properties and weldability. The typical chemical composition is as follows:

· Carbon (C): ≤ 0.18%

· Silicon (Si): ≤ 0.50%

· Manganese (Mn): ≤ 1.60%

· Phosphorus (P): ≤ 0.025%

· Sulfur (S): ≤ 0.015%

· Nickel (Ni): ≤ 0.70%

· Chromium (Cr): ≤ 0.30%

· Molybdenum (Mo): ≤ 0.08%

· Copper (Cu): ≤ 0.30%

· Niobium (Nb): ≤ 0.05%

· Titanium (Ti): ≤ 0.03%

· Vanadium (V): ≤ 0.05%

Mechanical Properties:

The mechanical properties of P460N are characterized by high strength and toughness, which are essential for pressure vessel applications. The typical mechanical properties are as follows:

· Yield Strength: ≥ 460 MPa

· Tensile Strength: 570 - 720 MPa

· Elongation: ≥ 19%

· Impact Energy (at -20°C): ≥ 40 Joules

Heat Treatment:

P460N steel plates are generally supplied in the normalized condition. Normalization is a heat treatment process that involves heating the steel to a temperature above its upper critical point and then cooling it in air. This process refines the grain structure and improves the mechanical properties of the steel.

Low-Temperature Impact Test:

P460N is subjected to a low-temperature impact test at -20°C to ensure that the material maintains its toughness and impact resistance at low temperatures. This is crucial for applications where the equipment may be exposed to cold environments.

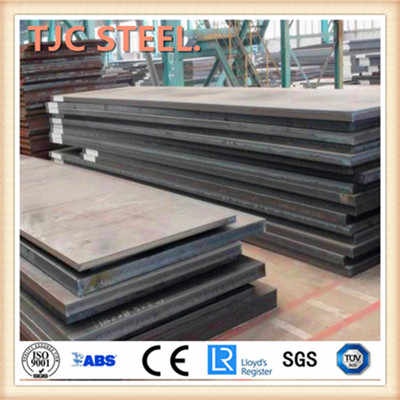

Available Dimensions:

TJC Steel Group offers P460N pressure vessel steel plates in a wide range of sizes to meet the diverse needs of our customers. The typical available dimensions are:

· Thickness: 6mm - 300mm

· Width: 1500mm - 4020mm

· Length: 3000mm - 18000mm

Main Applications:

P460N steel plates are commonly used in the construction of pressure vessels, boilers, heat exchangers, and other high-pressure equipment. Industries that frequently use this grade include:

· Chemical Processing

· Oil and Gas

· Power Generation

· Petrochemical

· Shipbuilding

TJC Steel Group Supply Cases:

TJC Steel Group has a proven track record of supplying high-quality P460N steel plates to various industries worldwide. One notable supply case involved the delivery of P460N plates for a major oil refinery project in the Middle East. The project required large quantities of normalized steel plates with stringent quality standards. TJC successfully delivered the material on time, meeting all the technical specifications and customer requirements.

In another instance, TJC supplied P460N steel plates for a chemical processing plant in Europe. The material was used to fabricate pressure vessels that needed to withstand high pressures and temperatures. TJC's ability to provide custom sizes and excellent service played a crucial role in the project's success.

In conclusion, EN10028-3 P460N is a versatile and reliable steel grade that is well-suited for the construction of critical pressure equipment. TJC Steel Group's commitment to quality and customer satisfaction makes it a trusted supplier of P460N steel plates for various applications across the globe.
